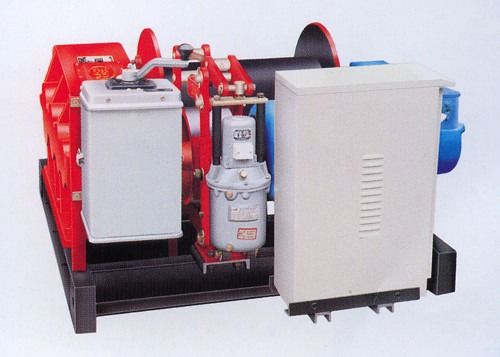

Widely Used Marine Boat Lifting Industrial Electric Winch Rate Capacity 45 Ton
Product description:
High tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch, most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily.
1. This high tech wireless steel hoisting wire rope 50m cable pulling tool equipment small electric winch mainly used for materials lifting, weight drops pulling and drawing in construction.
2. It also used as main hoisting equipment in crane.
3. It is the special winch of derrick and gantry frame and lifting trolley.
4. It is suitable for lifting material and equipments installation of construction, mine site and factory.
Technical parameters:
| |
JM5 (4-bearing style) |
JM5(open-style gear wheel) |
JM8(4-bearing style) |
JM8(open-style gear wheel) |
JM10(open-style gear wheel) |
| Rated pull(kN) |
50 |
50 |
80 |
80 |
100 |
| Rated speed(m/min) |
10 |
9.5 |
10 |
8 |
8 |
| Reeling drum’s rope capacity(m) |
270 |
190 |
350 |
250 |
170 |
| Steel wire rope |
Specification |
NAT6×37S+FC |
NAT6×37S+FC |
NAT6×37S+FC |
NAT6×37S+FC |
NAT6×37S+FC |
| Diameter(mm) |
Φ21.5 |
Φ21.5 |
Φ26 |
Φ26 |
Φ30 |
| Electromotor |
Type |
YZR160L-6 |
YZR160L-6 |
YZR180L-6 |
YZR180L-6 |
YZR200L-6 |
| Power(kW) |
11 |
11 |
15 |
15 |
22 |
| Brake arrester |
YWZB-300/45 |
YWZB-300/45 |
YWZB-300/90 |
YWZB-300/90 |
YWZB-300/90 |
| Appearance measurements(length× width × height) |
1235×1230×805 |
1620×1260×945 |
1075×1598×985 |
2090×1475×956 |
YWZB-300/45 |
| Weight of entire machine(kg) |
1560 |
1800 |
2650 |
2900 |
3000 |
1. Features:
1) Double Limit Switch.
2) Current Overload Protection Function.
3) High Quality Polyurethane Materials Buffer.
4) Emergency Stop System.
5) Weight Overload Protection Device.
6) Voltage Lower Protection Function.
7) Lifting Mechanism: Explosive-proof electrical hoist.
2. Advantages:
1) Top quality with competitive price.
2) Widely used in the double beam bridge crane and gantry crane.
3) Easy to install and high quality.
4) Compact structure and reasonable design.
5) Overload protection, shock protective, Explosion-proof performance
3. Announcements:
1) Temperature -10℃~+40℃ ( when surrounding temperature is below 00C, before start-up, lubricating oil should be heated up).
2) Humidity ≤85%.
3) Altitude below 1000 m, no fire and explosion accident and so on.
4) It uses 380V,50Hz, 3-phase alternating current power supply and ±5% tolerable voltage difference.
5) Working grades of winch in use are M4 or M5.
6) When increasing every grade working grade, its rated pull should correspondingly reduce 20%.
