Product Description
Small Size Industrial Electric Winch Multi-function Lifting 1Ton Rope Length 100m
Product description:
The straight winch can be lifted vertically, and the weight can be pulled horizontally or at an angle.The electric winch is composed of a motor, a coupling, a brake, a gear box and a drum, and is installed on the frame together.Wire rope, electric control box, handle switch, hook, wireless remote control can be added as needed.
Technical parameters:
| Product specifications |
| hoist(t) |
1 |
2 |
3 |
5 |
10 |
| Lifting weight(t) |
0.5-1 |
1-2 |
1.5-3 |
2.5-5 |
5月10日 |
| Single rope lifting speed(m/min) |
16 |
16 |
16 |
16 |
16 |
| Double rope lifting speed(m/min) |
8 |
8 |
8 |
8 |
8 |
| Wire rope diameter(mm) |
7.7 |
11 |
13 |
15 |
15 |
| Rated voltage(V) |
380 |
380 |
380 |
380 |
380 |
| rated power(KW) |
1.5 |
3 |
4.5 |
7.5 |
13 |
| Channel steel model |
8 |
10 |
10 |
10 |
13 |
| Tips |
Can be customized |
Check the work before use
1. Within the walking distance of the operator, the range of sight, and the route through which heavy objects pass should be free of obstacles and floating objects.
2. The controlled buttons should move up and down, the left and right directions should be accurate and sensitive, and the motor and reducer should have no abnormal sound.
3. The brake should be sensitive and reliable.
4 There should be no foreign objects on the running track.
5. The hook pulley should rotate flexibly.
Application:
Multi-purpose for one machine, widely used
Suitable for object lifting and machine traction
Small size and large capacity rope
Introduction:
This series of hoist is mainly used in the large and middle sized concrete, steel structure and mechanical equipment installation and dismantling.
The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf and road and bridge engineering and large factories and mines engineering equipment installation.
Safe operation rules:
1. Winch operators must be familiar with the performance, structure and operation method of the machine;
2. Before operation, check whether the ground anchor and hook of the winch are firm, and check whether the brake is sensitive and reliable.Whether the exposed belt, gear and other transmission devices and protective cover are complete;
3. Wire rope arrangement should be neat, in the process of putting flat car, at least 3~5 rings should be retained on the drum, the degree of wear of wire rope does not exceed 10%, the wire rope through the pulley can not have joints;
4. The hoist shall be used and maintained by a special person, and the ground line shall be checked frequently to see if it is in good condition. In case of leakage of electrical equipment or other faults, it shall be reported to the monitor in time.Not to repair without authorization;
5. No one is allowed to cross the wire rope;
6. Check whether the controller is flexible and reliable once a week;
7. In case of power failure during operation, the power supply should be cut off.
8. After the operation, cut off the power supply and lock the switch box.

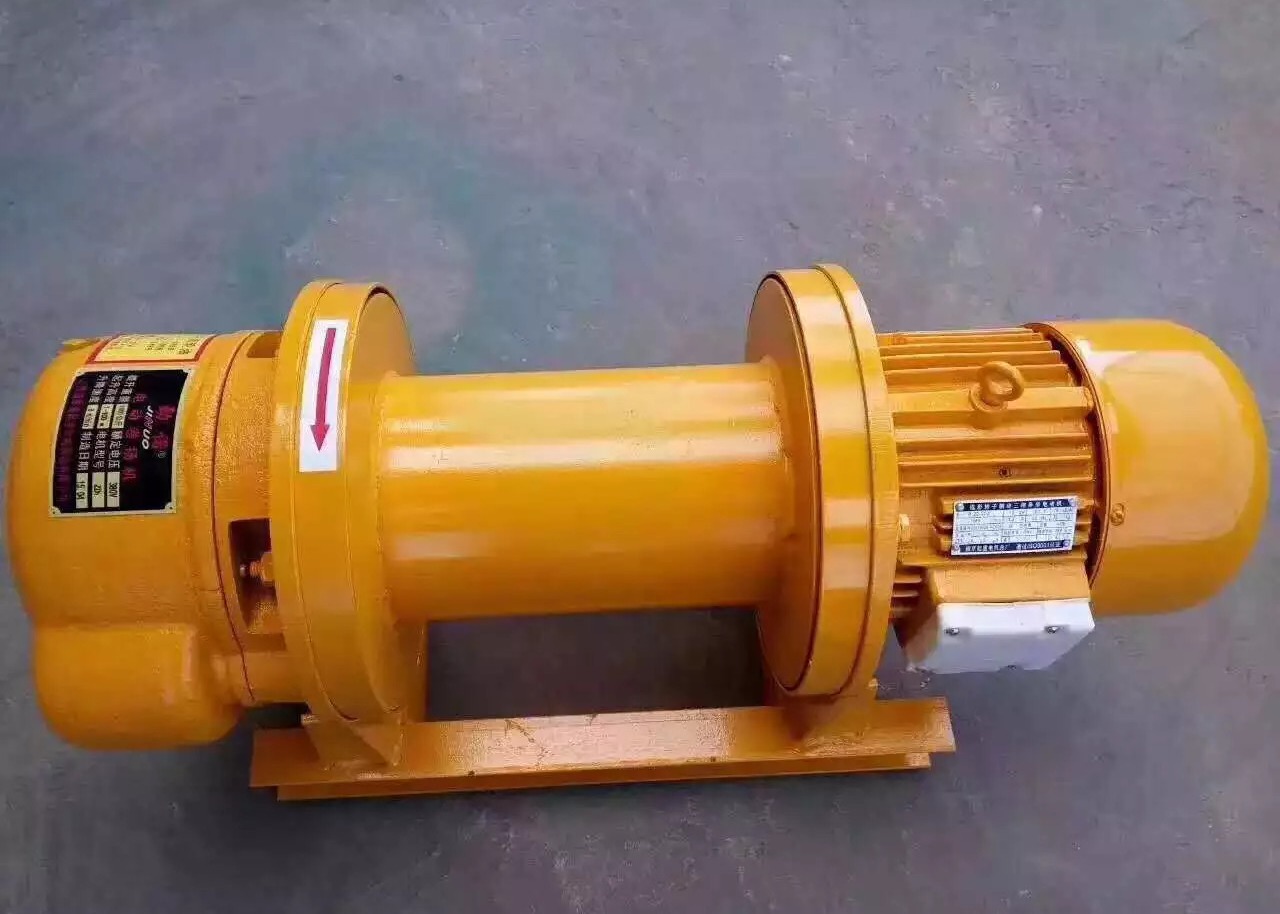

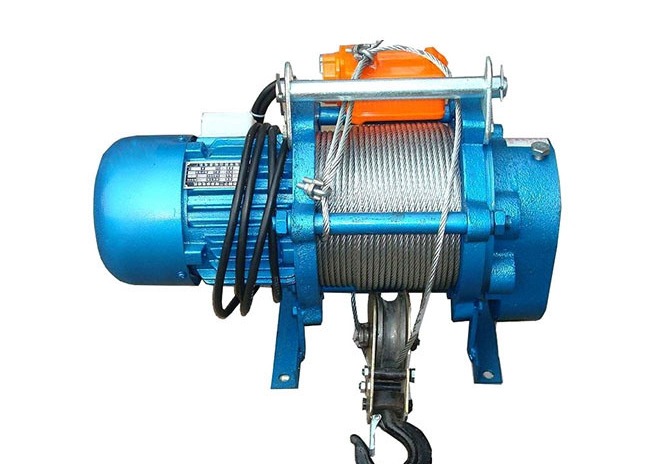

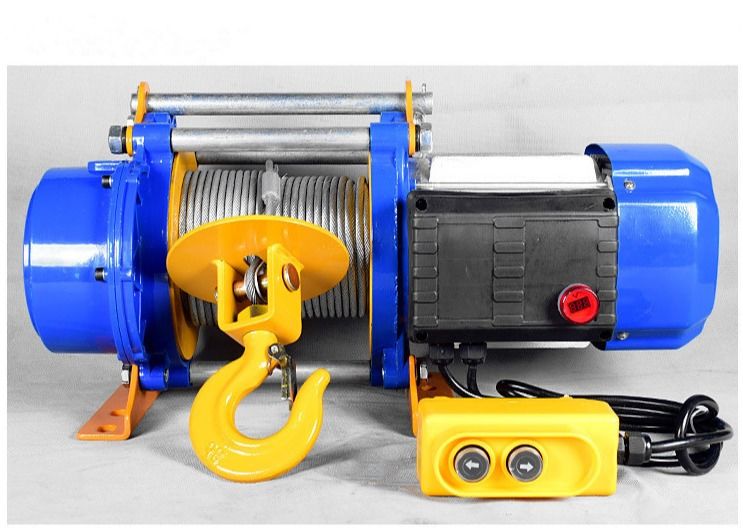

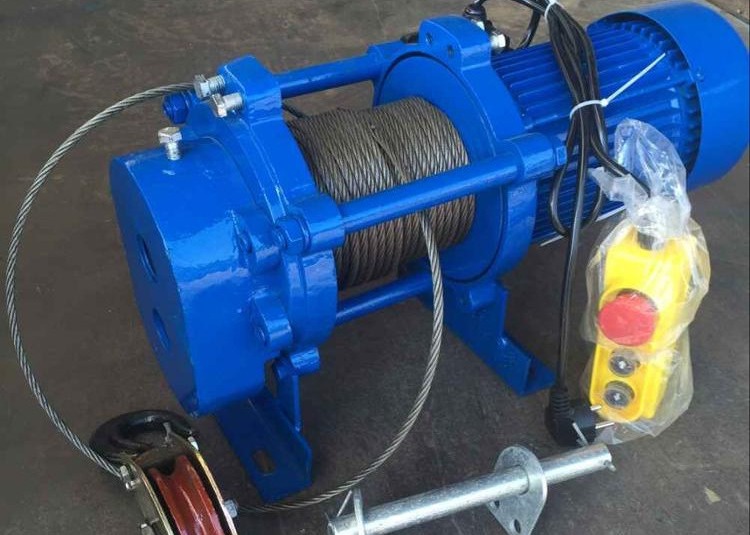

Product display
Packaging and shipping
1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.
2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.
3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.
