Wire Rope Length 150m 15T Industrial Electric Winch
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
Minimum Order Quantity : | 1 set | Price : | Negotiable |
---|---|---|---|
Packaging Details : | High quality plywood crate | Delivery Time : | 15 days after receiving deposit |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 100 set/per month |
Place of Origin: | China | Brand Name: | SILENCE |
---|---|---|---|
Certification: | ISO CE | Model Number: | JK |
Detail Information |
|||
Power Source: | 380v 50hz Or Others | Control Method: | Button Control |
---|---|---|---|
Model: | JK | Electric: | Schneider Brand |
Wire Rope Diameter: | 13 Mm | Speed: | High Speed |
Application: | Building Construction, Cranes, Bridge/Road, Shipyard, Boat | ||
High Light: | electric wire rope winch,marine electric winch |
Product Description
High quality wire rope electric winch 2 Ton with button control
Product description:
JK winch is mainly used for hoisting, pulling and unloading, towing heavy objects, such as various large and medium-sized concrete, steel structures and mechanical equipment installation and disassembly.The winch can be lifted vertically, horizontally or tilted. It can be used alone or as a component in machines such as lifting, road construction and mine lifting. Mainly used in construction, mining area lifting, small-scale equipment installation and material upgrading of civil construction and construction of the factory.
Feature:
1. Easy to operate and easy to move
2. Large amount of rope
3. Wire ropes are arranged in order
4. Safe and reliable lifting
5. The speed runs smoothly
6. High efficiency and labor cost savings
Advantage:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. When you have only ideas, you can develop a complete set of system products for your reference and choice.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
Technical parameters
Model | Rated pull of rope(KN) | Wire rope speed rating(m/min) | Minimum wire rope diameter(mm) | Motor | Total weight(kg) | Size | |||
type | power | length | width | height | |||||
JM1 | 10 | 15 | 9.3 | YZR 112M-6 | 2.2 | 270 | 740 | 690 | 490 |
JM2 | 20 | 16 | 13 |
YZR 160M-6 |
7.5 | 550 | 940 | 900 | 570 |
JM3 | 30 | 9.5 | 15.5 | YZR 160M-6 | 7.5 | 1100 | 1430 | 1160 | 910 |
JM5 | 50 | 9.5 | 21.5 |
YZR 160L-6 |
11 | 1800 | 1620 | 1260 | 948 |
JM10 | 100 | 8 | 30 | YZR 200L-6 | 22 | 3800 | 2280 | 1500 | 950 |
JM16 | 160 | 10 | 37 |
YZR 250M-8 |
37 | 8800 | 3750 | 2400 | 1850 |
JM20 | 200 | 10 | 43 | YZR 280S-8 | 45 | 9900 | 3950 | 2560 | 1950 |
JM25 | 250 | 9 | 48 | YZR 280M-8 | 55 | 13500 | 4350 | 2800 | 2030 |
JM32 | 320 | 9 | 52 | YZR 315S-8 | 75 | 20000 | 4500 | 2850 | 2100 |

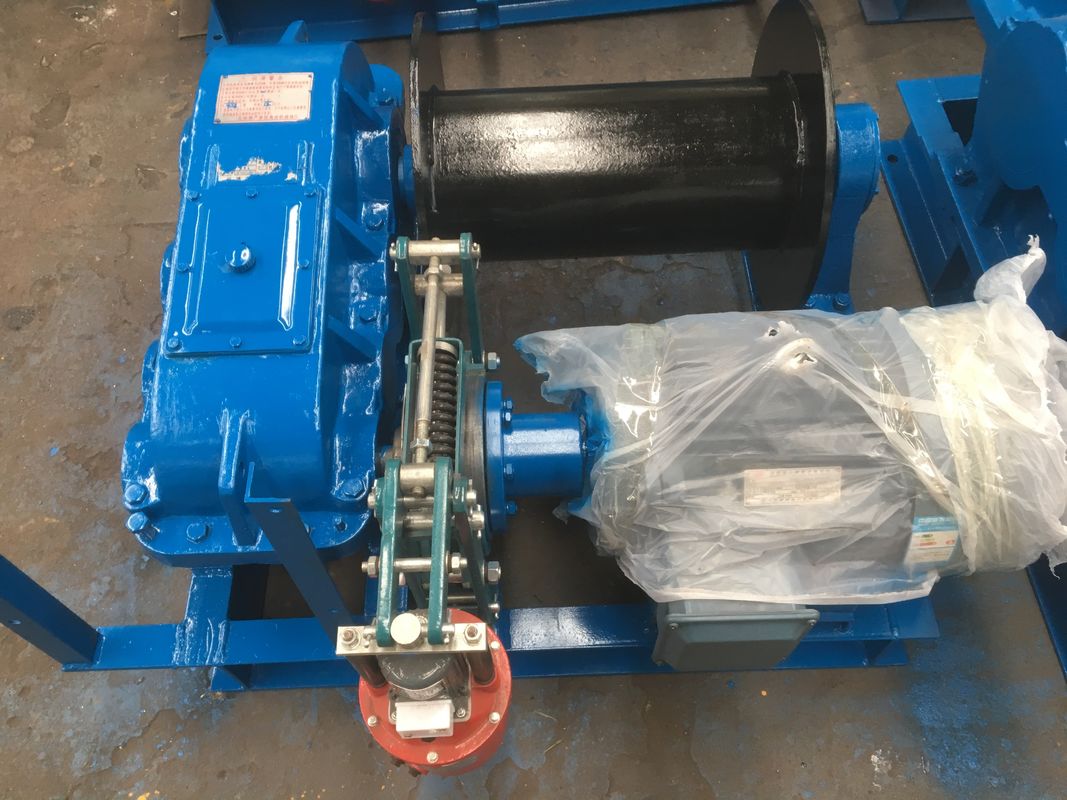

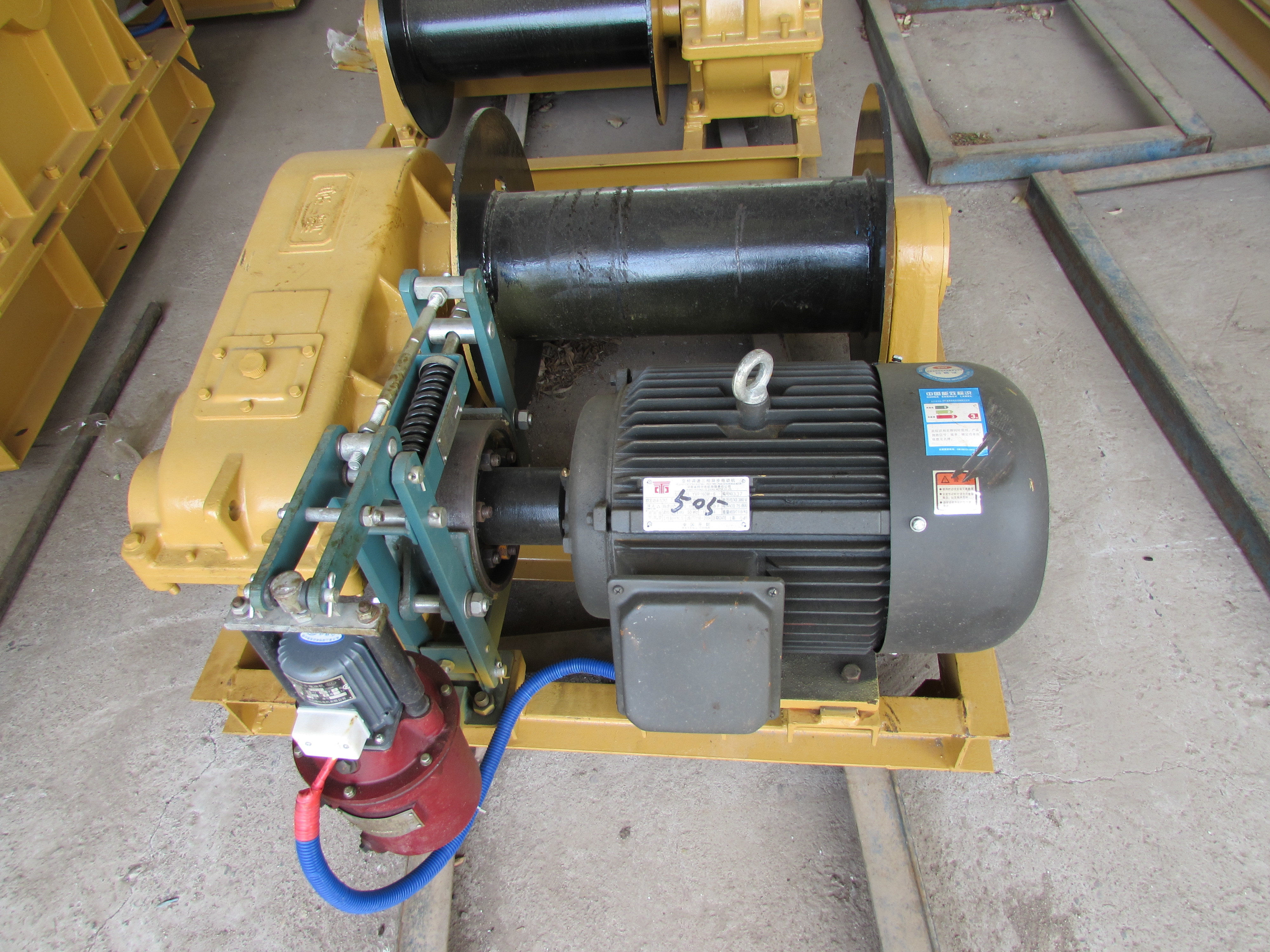

Product display
Packaging
