Product Description

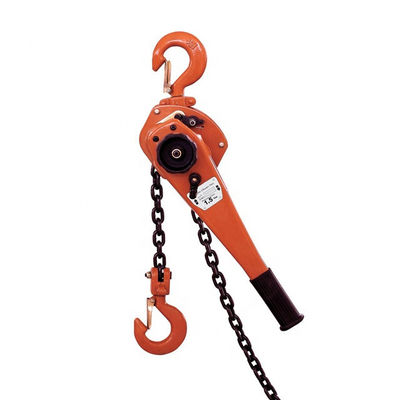

3 Ton 3m High Porability Small Volume Safety And Reliability Lever Block
Product presentation
Adjust up&down switch to corresponding position and rotate hand wheel to the right till chain is in tension, then start to work.
When the up&down switch is in the middle, the chain can be pulled freely to adjust position of hook.
Alloy steel forging hook will not break but deform slowly when it is overloaded, which ensures safety.
Lifting chain is made from G80 galvanized manganese steel with high intensity, high toughness and long service life.
Chain drop-proof ring would prevent the chain from being pulled out when pulling chain freely to adjust position of hook.
The cover on handle provides a comfortable grip feeling and prevent your hand from injury.
Product details
Alloy steel housing: made of alloy steel plate, strong and durable, not easy to rust.Small and easy to carry.
The transfer of goods and lifting can have a multiplier effect.
1. High-speed gear: rustproof, corrosion-proof, not easily deformed long service life.
2. Manganese steel hook: impact resistance, strong resistance to pressure, not easy to break, not easy to deformation.
3. Nut bolt: high strength nut bolt, secure and better protection.G80 chain: high strength G80 chain.
Medium frequency quenching heat treatment, low wear anti-corrosion.
Features:
1) Capacity from 0.75T to 9T, Minimum headroom required and very versatile in operation
2) Automatic double-pawl braking system
3) Chain guides provide smooth chain operation
4) Roller bearing supported load sheaves for avoiding abrasion
5) G80 Chain are made of special alloy steel that is exclusively
6) Drop forged kooks to ensure superior quallity and safety
7) The lever hoist static test is 4 times of capacity, and running test is 1.5 times of capacit one by one
8) The lever block is of high efficiency, fast lifting and light hand pull.
9) Surface finishing: Automotive painting.
Product Parameter
| Model |
HSH-0.75T |
HSH-1.5T |
HSH-3T |
HSH-6T |
| Loading Capacity |
ton |
0.75 |
1.5 |
5 |
6 |
| lb |
1650 |
3300 |
6600 |
13200 |
| Standard Lifting Hight |
M |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
| ft |
5 |
10 |
5 |
10 |
5 |
10 |
5 |
10 |
| |
ton |
1.13 |
2.25 |
4.5 |
9 |
| Testing Load |
lb |
2475 |
4950 |
9900 |
19800 |
| Min.disiance between two hooks |
mm |
440 |
550 |
650 |
650 |
| in |
17 |
22 |
26 |
26 |
| Max. Full Load Pulling Force |
N |
250 |
310 |
410 |
420 |
| lbf |
56 |
70 |
92 |
94 |
| Diameter of loading chain |
mm |
6 |
8 |
10 |
10 |
| in |
0.24 |
0.31 |
0.39 |
0.39 |
| No.of loading chain |
1 |
1 |
2 |
3 |
| |
mm |
285 |
410 |
410 |
410 |
| Handle Length |
in |
11 |
16 |
16 |
16 |
Workshop scene
Shipping and packaging
