10 m Lifting Height EOT Type Top Running Singel Girder Overhead Crane

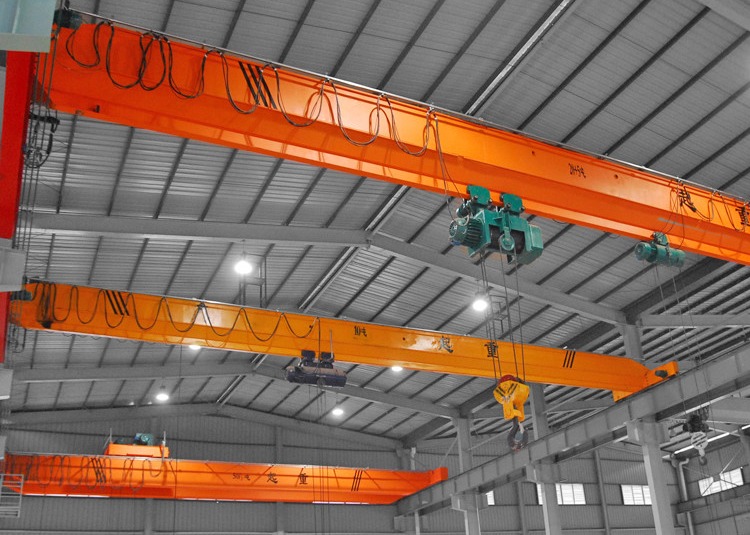

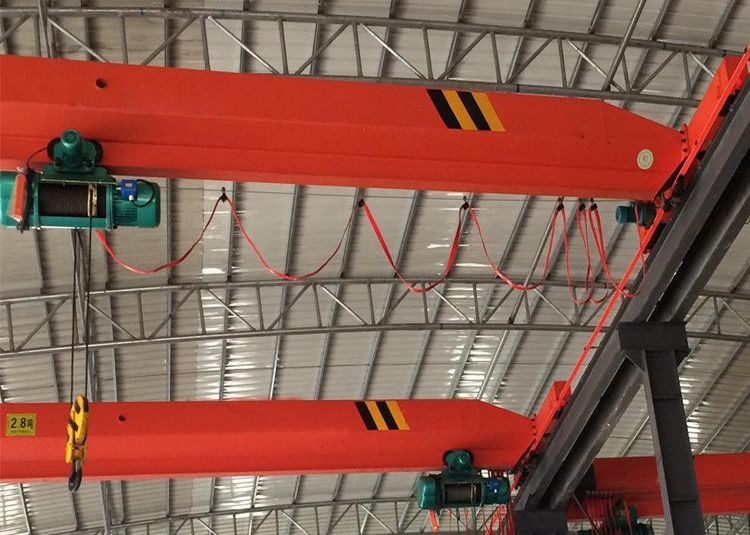

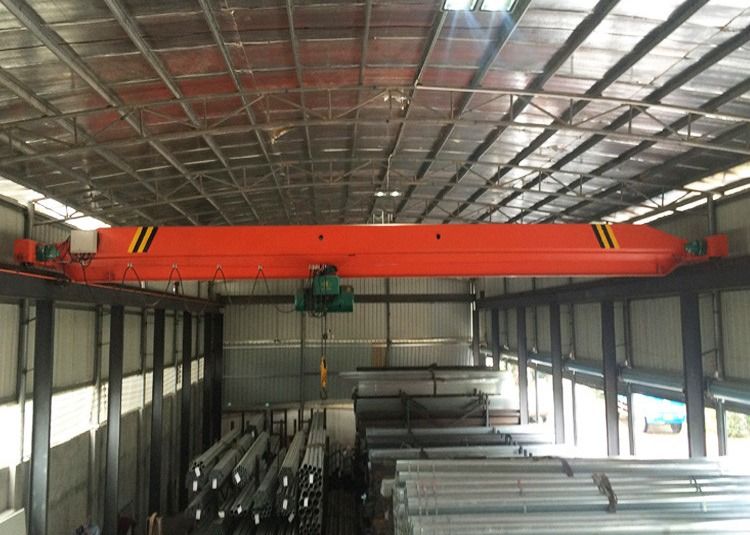

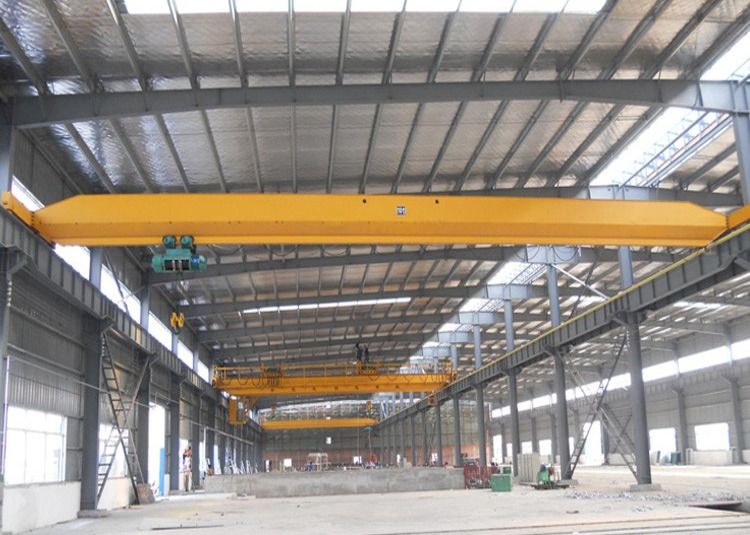

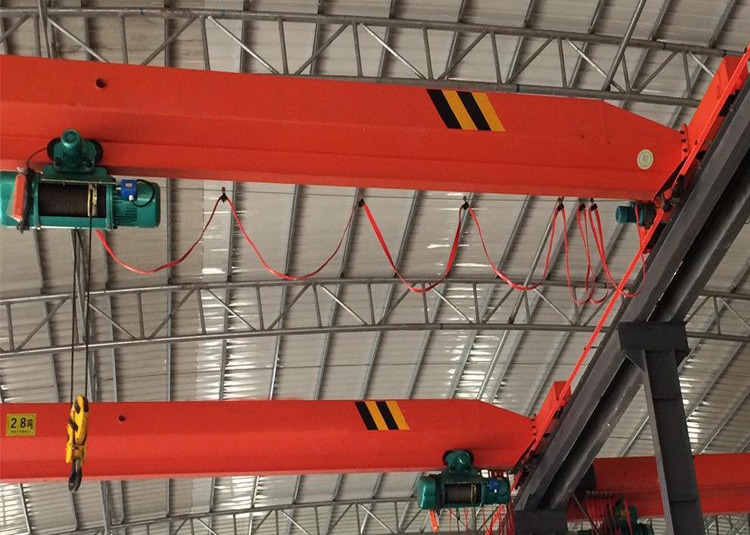

Description of single girder overhead crane
This overhead crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.This product has two operational methods, ground or operational room which is open or closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, side way and ends in order to satisfy the users' choice under different conditions.
Technical parameter of single girder overhead crane
| Span |
S(m) |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
| Lifting height |
m |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
| Lifting speed |
m/min |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
| Trolley speed |
m/min |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
| Crane speed |
m/min |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
| Lifting motor |
kw |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
| Trolley motor |
kw |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
| Total weight |
t |
3.26 |
3.76 |
4.4 |
5.17 |
5.92 |
7.48 |
9.71 |
14.05 |
| Max Wheel Load |
KN |
51.3 |
55.3 |
58.4 |
61.3 |
63.9 |
68.2 |
74.2 |
85.4 |
| Track |
|
P24 |
P24 |
P24 |
P24 |
P24 |
P24 |
P24 |
P24 |
| Main dimension |
mm |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
| Rail top to main top |
H1 |
720 |
720 |
820 |
875 |
875 |
925 |
1100 |
1200 |
| Rail top to hook centre |
H2 |
1850 |
1850 |
1850 |
1900 |
1940 |
2000 |
1920 |
1920 |
| Wheel base |
W |
2000 |
2000 |
2000 |
2500 |
2500 |
3000 |
3500 |
4000 |
| Crane width |
B |
2500 |
2500 |
2500 |
3000 |
3000 |
3500 |
4000 |
4700 |
| Hook left limitation |
S1 |
1293 |
1293 |
1293 |
1293 |
1293 |
1293 |
1293 |
1293 |
| Hook right limitation |
S2 |
1893 |
1893 |
1893 |
1893 |
1893 |
1893 |
1893 |
1893 |
| Main girder height |
H3 |
900 |
900 |
1000 |
1100 |
1140 |
1250 |
1350 |
1450 |
| Note: Control mode for ground operation. |
Advantage of single girder overehad crane
Modular design, can be flexibly combined into different lifting tonnage lifting speed and work hierarchy
Standardization, user-friendly design in improving operating performance while greatly reducing maintenance costs
Smooth design helical gear surface hardening and grinding process, drive more efficient
Independent drive cone is smaller than the brake motor noise, mute tooth surface design, run quieter
Component configuration advantages:
Original German import ABM hoisting motor
Hoist motor, gearbox and brake three in one large lifting torque, small size, smooth running, low impact, low noise, high efficiency, asbestos-free in brake disc, long life time, production grade reaches IP65, continuous operation duration factor is 60% could meet the requirements of high frequency handing
Original German noble traversing motor, compact -sizes and running smoothly
Gear box made of aluminum, good heat dissipation, long lifespan
Frequency conversion control, low-noise design, starting and braking balance, low impact
Asbestos-free in brake disc, normal service lifespan is 1 million times
High performance and galvanized steel wire rope through salt spray test 72 hours
Schneider inverter and electrical components, high integration, small size lightweight, easy maintenance
Product Features of single girder overehad crane
1. Crane traveling limit switch
2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Emergency stop function
7. Rain cover for outside hoist, driving units, electrical cubicle.
8. Warning indicator: flashing lights and warning sound.
9. Wireless infra-detector for anti-collusion
