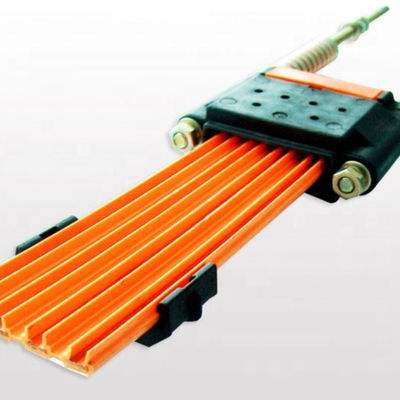

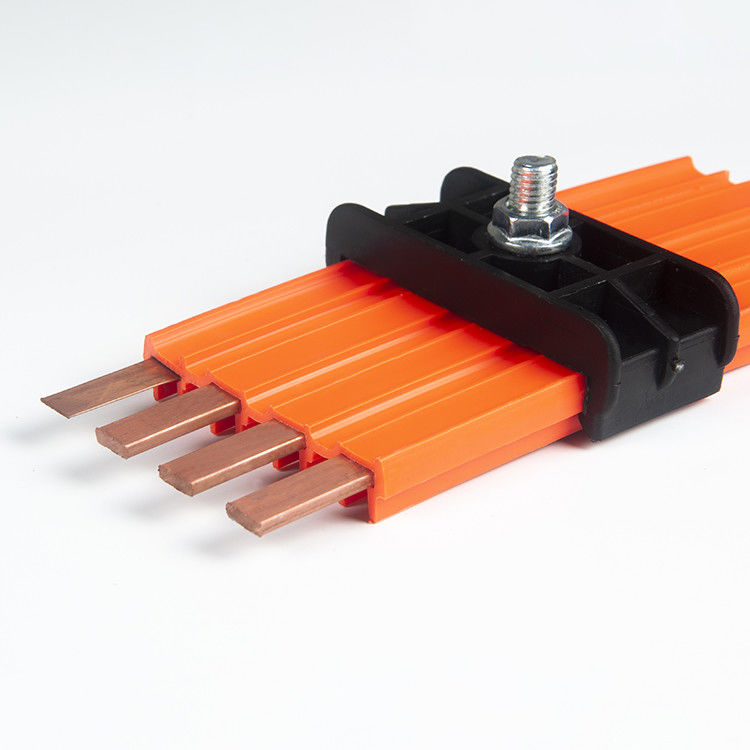

3P 4P 6P 90m Overhead Crane Electrical Bus Bars High Performance Orange Color

Product Description

3P 4P 6P 90m High Performance Inside Busbar System Used In Crane Power System

Product details

Safety seamless bus bar is an energy-saving seamless bus bar developed by referring to foreign advanced experience and combining with national conditions. The protective shell is made of engineering plastic and aluminum-plastic alloy.

The conductor is aluminum alloy (with stainless steel inside) or pure copper. It is not affected by rain, snow, and frost. It is suitable for outdoor, water fog, acid fog, conductive dust and other poor environments.

Safety sliding contact line for moving equipment power supply, consists of two parts, sliding guide rail (fixed part, into the power supply, often guide by single 4 m long/root or can be connected with the 6 m/root), collector (sliding parts, can be in sliding orbit or sliding contact with the copper bar and took in electricity, collector for connected to the mobile motor).

Product superiority

1, Its conductor is anaerobic copper with good conductive, quality pure and bright color.

2. Copper is in close contact with plastics and that busbar can’t be poor contact because of vibrating.

3, Its shell is PVC with shock resistance, UV resistant and good physical.

4, It has no joint and small voltage drop.

5, It has few parts and can be installed easily.

6, The collector frame has a long arm and independent tension spring and that busbar have a big activity radian.

Technical parameters

Application scenarios

Crane system, automatic storage, playground power supply, production test system.

Product practical application scenarios are diversified, with a wide range of customer groups.

Installation diagram

There are two ways to install busbar, horizontal installation and vertical installation.

Parts
